General
Power Requirements 12 V DC ± 10% (10.8 V to 13.2 V)
PoE++ IEEE802.3bt standard: DC 42 V to 57 V (Camera Input)*1
(Software authentication (LLDP) is supported).
Current Consumption 5.0A (XLR IN connector), 1.5A (PoE++ power supply)
Ambient Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Ambient Operating Humidity 20 % to 90 % (no condensation)
Storage Temperature –20 °C to 50 °C (–4 °F to 122 °F)
Mass Approx. 4.6 kg (10.14 lbs) (excluding mount bracket)
Dimensions (W x H x D) 213 mm x 277 mm x 240 mm (8.39 inches x 10.91 inches x 9.45 inches)
(excluding protrusions, ceiling mount bracket)
Finish

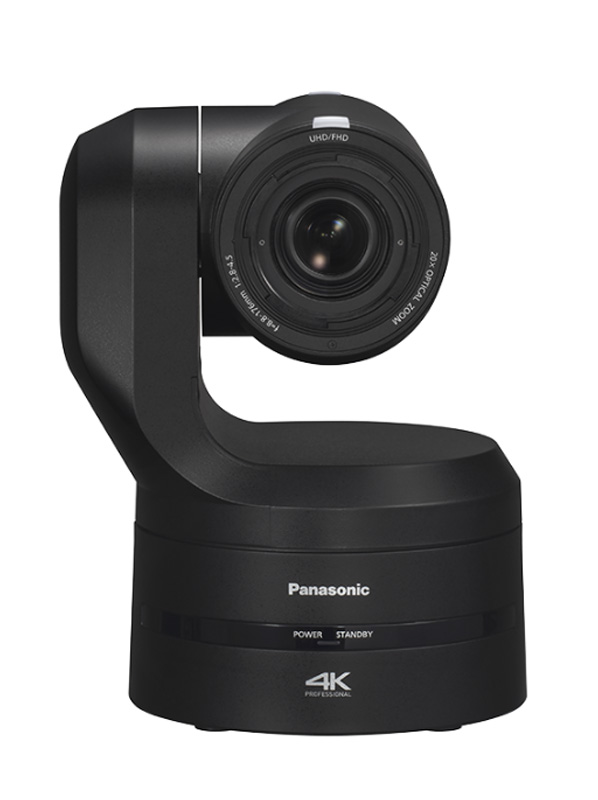

AW‑UE160K: Black
Controller Supported AW-RP150GJ, AW-RP60GJ, AK-HRP1010GJ, AK-HRP1015GJ, AK-HRP250GJ
Camera Unit
Imaging Sensors 1-type (1″) (Effective size) 4K MOSx1
Effective Pixels Approx. 9,620,000 pixels
Lens Motorized Optical 20x zoom, F2.8 to F4.5
[f=8.8 mm (11/32 inches) to 176.0 mm (6-15/16 inches),35 mm (1-3/8 inches) equivalent: 24.5 mm (31/32 inches) to 490.0 mm (19-9/32 inches)]
Zoom
• Optical zoom: 20x
• i.Zoom
• Digital zoom
Conversion Lens Not supported
Angle of View Range Horizontal angle of view: 75.1° (wide) to 4.0° (tele)
Vertical angle of view: 46.7° (wide) to 2.3° (tele)
Diagonal angle of view: 82.8° (wide) to 4.6° (tele)
Optical Filter Through, 1/4, 1/16, 1/64*2, (Through is used as “Night mode”)
Focus Switching between auto and manual
Focus Distance Entire zooming range: 1000 mm (3.3 ft)
Wide end: 100 mm (0.33 ft)
Color Separation Optical System 1MOS
Standard Sensitivity F11 / 2,000 lx, F14 (Normal) / 2,000 lx (Low light)
Minimum Illumination 2 lx (F2.8, 59.94p, 50IRE, 42 dB, without accumulation)
S/N 60 dB or more
Horizontal Resolution 1,600 TV lines Typ (Center area, UHD Mode, Wide)
Gain Selection Auto, 0 dB to 36 dB*3
Frame Mix Auto, 0 dB, 6 dB, 12 dB, 18 dB, 24 dB*4
Electronic Shutter Speed 60p/59.94p/59.94i 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
50p/50i 1/60, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
29.97p 1/48, 1/50, 1/60, 1/96, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
25p 1/48, 1/50, 1/60, 1/96, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
23.98p 1/48, 1/50, 1/60, 1/96, 1/100, 1/200, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
59.94p/120 fps 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
50p/100fps 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
Synchro Scan 60p/59.94p/59.94i 60.00 Hz to 7200 Hz
50p/50i 50.00 Hz to 7200 Hz
29.97p 30.00 Hz to 7200 Hz
25p 25.00 Hz to 7200 Hz
23.98p 24.00 Hz to 7200 Hz
59.94p/120 fps 120.00 Hz to 7200 Hz
50p/100fps 100.00 Hz to 7200 Hz
Gamma HD / NORMAL / CINEMA1 / CINEMA2*5
MASTER GAMMA (0.15～0.75)
R GAMMA (-75～+75)
B GAMMA (-75～+75)
White Balance ATW : 3200K, 5600K
ATW Speed : Normal / Slow / Fast*6
AWB : AWB-A / AWB-B
VAR (selectable between 2000K and 15000K by designating a value)
Chroma Amount Variability OFF, –100 % to 40 %
Scene File Scene1 to 8
Output Format
(UHD/FHD SDI) 4K 2160/59.94p, 2160/50p, 2160/29.97p (Native), 2160/25p (Native), 2160/24p (Native), 2160/23.98p (Native)
HD 1080/119.88p*7*8, 1080/100p*7*8, 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p (Native), 1080/25p (Native), 1080/24p (Native), 1080/23.98p (Native), 1080/59.94i, 1080/50i, 720/59.94p, 720/50p
Output Format
(HDMI) 4K 2160/59.94p, 2160/50p, 2160/29.97p (Native), 2160/25p (Native), 2160/24p (Native), 2160/23.98p (Native)
HD 1080/119.88p, 1080/100p, 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p (Native), 1080/25p (Native), 1080/24p (Native), 1080/23.98p (Native), 720/59.94p, 720/50p
Output Format
(Fiber (video only)) 4K 2160/59.94p, 2160/50p, 2160/29.97p (Native), 2160/25p (Native), 2160/24p (Native), 2160/23.98p (Native)
HD 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p (Native), 1080/25p (Native), 1080/24p (Native), 1080/23.98p (Native), 1080/59.94i, 1080/50i, 720/59.94p, 720/50p
Output Format
(ST 2110*9) HD 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p (Native), 1080/25p (Native), 1080/24p (Native), 1080/23.98p (Native), 720/59.94p, 720/50p
Synchronization System
Internal/External synchronization (BBS/Tri-level sync)
Input
Input Connector DC IN DC 12 V IN
G/L IN (BNC) BBS (Black Burst Sync), tri-level sync supported
AUDIO INPUT 1/2 XLR (2ch) or MIC/LINE Input compatibles (SDI/HDMI/IP)
AAC compatibility (compatible with IP only)
XLR 3-pin female balanced input: 2ch
• During MIC input
Input level: –50 dBu or -60 dBu/-40 dBu (0 dB=1 V/Pa, 1 kHz)
Phantom power compatible, Supply voltage: 47 V±2 V
Input impedance: Approx. 10kΩ
• During LINE input
Input level: 0 dBu (or +4 dBu/-20 dBu)
Input impedance: Approx. 10kΩ
• Input volume variable range: -40 dB to 0 dB to +20 dB (1 dB step)
• Embedded audio output level: -12 dBFS/-18 dBFS/-20 dBFS
• Sampling frequency: 48 kHz
• Quantization bit rate: 24 bit (SDI/HDMI), 16bit (IP)
Output
Video Output HDMI HDMI 2.0 standard
4:2:2/10bit*10*11
12G-SDI OUT SMPTE2082‑1/SMPTE424M/SMPTE292M/ 75 Ω (BNC x 1)*12
3G-SDI OUT1 SMPTE424M/SMPTE292M/ 75 Ω (BNC x 1)*12
3G-SDI OUT2/PM SMPTE424M/SMPTE292M/ 75 Ω (BNC x 1)*12
SFP+ SFP+ compliant (Single Fiber)*13
USB USB3.0 HOST 5G mobile router (with USB tethering support)*14
Input/Output
Input/Output Connector LAN LAN connector for IP control (RJ‑45)
RS-422 CONTROL IN RS-422A (RJ‑45)
SFP+ (ST 2110*9) Compatible protocol:
• ST 2110-10/-20/-21/-30
• PTP ST2059-2
• NMOS IS-04/IS-05
Number of outputs: Video x3 (Main line, Crop, Monitor), Audio x2
Number of inputs: Video x1 (RETURN)
Video format: FHD*15
Pan-tilt Head Unit
Pan-tilt Head Control IP connecting cable • With PoE++ ethernet hub
LAN cable*16 (category 5e or above, straight cable) up to 100 m
• Without PoE++ ethernet hub
LAN cable*16 (category 5e or above, straight cable) up to 100 m*17
AW protocol connecting cable LAN cable*16 (category 5e or above, straight cable) up to 1000 m
Installation Method Stand-alone (Desktop) or suspended (Hanging)*18
Pan/tilt Operation Speed Speed range 0.08 °/s to 180°/s (Normal mode)*19
Maximum speed Normal mode: 60°/s
Fast1 mode: 90°/s
Fast2 mode: 180°/s
Panning Range ±175°
Tilting range –30° to 210°*19
Quietness NC35 or less*20
Supported Operating Systems and Web Browsers
Supported Operating Systems and Web Browsers Windows Windows®10
Microsoft Edge
Google Chrome
Mac macOS 10.13 / Safari 13
macOS 10.14 / Safari 13
macOS 10.15 / Safari 13
macOS 10.15 / Google Chrome
iPhone/iPad/ iPod touch iOS
Safari
iPadOS
Android Android OS
Google Chrome
IP Streaming
Image Streaming Mode JPEG (MJPEG), H.264, H.265, NDI|HX Ver.2, High Bandwidth NDI*21*22
Image Resolution 3840×2160, 1920×1080, 1280×720, 640×360
Image Transmission Setting (JPEG) Frame Rate: Maximum 30 fps*23*24
Image quality (Fine / Normal)
Image Transmission Setting (H.264) Transmission Type Unicast port (AUTO)
Unicast port (MANUAL)
Multicast port
Transmission mode CBR, VBR
Frame Rate [60Hz] 5fps / 15fps / 30fps / 60fps (UHD: 30fps, 60fps)
[50Hz] 5fps / 12.5fps / 25fps / 50fps (UHD: 25fps, 50fps)Max Bit Rate 2048kbps / 4096kbps / 8192kbps / 10240kbps / 12288kbps / 14336kbps / 20480kbps / 24576kbps / 51200kbps / 76800kbps
Image Transmission Setting (H.265) Transmission Type Unicast port (AUTO)
Unicast port (MANUAL)
Multicast port
Transmission mode CBR, VBR
Frame Rate [60Hz] 30fps / 60fps
[50Hz] 25fps / 50fpsMax Bit Rate 2048kbps / 4096kbps / 8192kbps / 10240kbps / 12288kbps / 14336kbps / 20480kbps / 24576kbps / 51200kbps / 76800kbps
Audio Compression Type AAC-LC, 48 kHz / 16 bit / 2ch
Supported Protocol Network Protocol: ICMP, ARP, GARP, MLD
Transmission Protocol TCP/IP, UDP/IP
Application Protocol IPv4 : HTTP、HTTPS、DNS、NTP、DHCPv6、MDNS、SNMP、802.1X
IPv6 : HTTP、HTTPS、DNS、NTP、DHCPv4、MDNS、SNMP、802.1X
Video Streaming Protocol RTP / RTCP over RTSP, RTMP, RTMPS, SRT, MPEG2-TS over UDP, NDI|HX ver.2,
high bandwidth NDI
External Device Cooperation Protocol FreeD, TSL5.0, SNMP
NDI® Support
NDI® Support NDI®(High Bandwidth NDI®, NDI®|HX Ver.2)*21*22
Output Format
(High bandwidth NDI) 4K 2160/59.94p, 2160/50p, 2160/29.97p, 2160/25p, 2160/24p, 2160/23.98p
HD 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p, 1080/25p, 1080/24p, 1080/23.98p, 720/59.94p, 720/50p*25
Image Resolution
(NDI®|HX Ver.2) 1920×1080, 1280×720*26
Image Streaming Setting High Bandwidth NDI® Transmission Type: TCP/UDP
Unicast/Multicast
Bit rate: Max 250 Mbps
NDI®|HX Ver.2 Transmission Type: TCP/UDP
Unicast/Multicast
